We have sold 1,000's of Ram-Line stocks over thelast 30 years.
This is some of the the info we have seen that may prove useful.
For some photos of Ram-Line stocks on Firearms. Click on
Ram-Line Firearms
Some do-it-your-self, Camo Paint info at bottom of page..
Info here is a good reference
source
for Rifle and Shotgun actions and Stocks.
AS of November 2013 Ram-Line
Changed to Champion Trarget Stock
Champion has Discontinued all
Stock as of November 2018
Action lengths Screw spacing
|
|
| Make |
Model |
Super Short
|
Short |
Long
|
Magnum
|
| Browning |
A-Bolt |
7 3/8
|
7 7/8 |
7 7/8 |
|
| Mauser |
M-98 Intermediate then Large
|
|
7 5/8
|
7 7/8 |
|
| Mauser |
M-93 / 96 /95
|
|
7 5/8
|
|
-
|
| Rem |
700 / 721 / 725 |
|
|
7 3/8 |
|
Rem
|
700 / 722
|
|
6 1/2
|
|
|
| Rem |
788 |
|
6 3/4 |
7 |
-
|
Rem
|
600
|
|
5 5/8
|
|
|
| Ruger |
77 |
|
7 1/4 |
7 3/4
|
8 1/4
|
| Ruger |
77 MK2 |
|
7 5/8 |
8 3/8 |
8 5/8
|
| Savage |
110 / 111/ 116
|
|
4 1/2
Old Version M-110
|
5 |
5
|
| Savage |
10 / 11 / 12 Short Action
|
|
4 1/4 |
|
|
| Howa |
1500 |
|
7 1/4 |
7 3/4 |
7 3/4
|
| Win |
70 |
6 3/8
|
7 1/8 |
7 5/8 |
|
Bolt Action Rifle Length is from
center
to center on trigger guard screws.
Action Length caliber's
Short Action includes:
17
Remington,.204
Ruger,.222
Remington, .222
Remington Magnum,.224
Weatherby Magnum.22-250
Remington,
.223 Remington (5.56 NATO).
243 Winchester.
250 Savage, 257 Roberts, 260
Remington,.
270 WSM,
6mm Remington,.
30-30
Winchester.,
308
Winchester,
.300
WSM,.325
WSM,.338
Federal,.35
Remington,.44-40
Winchester,
7mm-08
Long Action includes: 25-06 Remington,
270 Remington , 280 Remington,
30-06 Springfield,
7mm Mauser,,
Magnum includes 7mm Remington mag, 300 mag, 375, 458
Long Magnum includes: 8mm mag, 416 mag,
416
Rigby
Ram-Line Rifle stocks are not
made
for heavy weight (varmint series Barrels ), or heavy magnums
375-458 magnum barrel contours. Barrel channel is .70"
width at front of
stock.
Ram-Line Rifle stocks weight 2 to
2
1/4 lbs, depending on model.
Length of pull 13 1/2" to 14" depending
on
model.. Over all length 32". From receiver to tip pf stock is12".
Youth/ Cadet rifle Stocks
approximately
12 1/4 to 12 1/2 inches length of pull.
The average 1.25" to 1.5" shorter than factory stocks depending
on
models
Ram-Line stock info
Some do-it-your-self, Camo Paint
info
at bottom of page..
We have sold 1,000's of Ram-Line stocks
over
the years.
This is some of the the info we have seen that may prove useful.
Waranty
not covered
are products sold for Golden ColoradoProducts or prior to 2001.
Only Current production since 2010 are covered by a limited
warranty
(ATK).
Ram-Line Magazines
No pistol magazine have been made since 1994.
Ram-Line Ruger 10-22
Magazines, Have been discontinued and replaced with Shooter Ridge Champion
Target
Magazines
Better product, and easier to clean. Now avaiable with
steel lips.
The 50 shot magazine (discontinued) will work only in
10-22 with the metal
trigger
guard.. Design change from Ruger
changed the trigger guard specifications when Ruger changed to a
Plactic
triggerguard
Ram-Line 10-22
magazines.
For older magazines, We find that lead bullets, and standard velocity
loads will not always
feed properly.
Best ammo we have found that works is Federal Classic HV or CCI Mimi
Mag copper jacketed
Round Nose.
Cheap 22 LR in lead in Winchester and Blazer, are the worst
offenders
in jamming.
Any Magazine Having MAC or MAT
as part
of the product number was made prior to 1994. ( not covered by
warranty)
Ram-Line Rifle stocks /
Champion Target stocks after 2014
If you wish to replace the Factory Pad.
Replacement
recoil pads:
For full size rifle stocks Pachmayr # 01703
Full size rifle stock butt is 5" top to bottom an 1 5/8 Wide at widest
point.
Stock Has Predilled ribs for Pads. Hole spacing is 3 .125 inches
For 2 piece Rifle
and
Shotguns stock sets Pachmayr
# 01708
Full size rifle stock butt is 4 3/4" top to
bottom
an 1 5/8 Wide at widest point. Stock Has Predilled ribs for Pads.
Hole
spacing is 3 . inches
If cutting down a full size stock to make a youth stock (up to two
inches
cam be cut off) a recoil pad will need to fitted to stock.
RIFLE STOCKS
Browning
A-Bolt only available for Long Action rifles, Not made for magnum or short action.
For A-Bolt , A-Bolt II and Medallion Long action. .Japanese
models
only.
Will not fit A-Bolt II made after 2008 (additional tiggerguard
screw)
Will not fit other Browning Rifle Models
Howa
Fits Howa 1500, S&W 1500 Mossberg 1500, Weatherby Vanguard
Mauser's
Interarms Mark X , Parker Hale, FN, Large Ring Sporters and others.
#20981, 78067 standard barrels. (discontinued)
Mauser Large Ring military, M-98, M-24 series. # 21981 /
78058 Made
for Military barreled version, Not cut for a sporter bolt.
Mauser Small Ring military, Swedish M-38 / 96/ 94, Spanish M-93,
Chilean
1895 and others #20961 / 78040, Made for military barreled
version . Not
cut
for sporter bolt.
See Reference at bottom of page about Mausers.
Remington
Rem M-600 / 660 series, stock is
similar
to the 700 serie rifle stock, inletted for the Model 600 series
action
and triggerguard.
Rem M-700 BDL / 722
Triggerguard
and hinged floor plate.
Rem M-700 ADL Trigger guard and
blind magazine.
Rem M-721 / 722 Trigger guard
and blind magazine.
Rem M-78 Blind trigger guard
Remington M-721 / 722 (Use
M-700
BDL) Customer needs to have some inletting on stock done for rear sight
boss.. Lay action in stock trace around area of barrel
where rear sight
is, and remove action and cut out traced section. Stock needs minor
clearance
for safety to slide back and forth. Simple to do yourself in
moments
with a hand file, or knife.
Reuse original Original trigger guard . A short spacer may
be needed under rear screw.
Remington M-725 (Enfield
P-17 Action), no stocks made.
Stock made for the Later version using Remington 721 Series
with Hinged floor Plate.
Remington M-7400 , 742 Model 4
and Model 750 Ram-Line stocks will fit most of these
models.
Not made for the Model 740 or for Model 742 made before 1975.
Only made for the M-742 made after 1975 only. Serial numbers after A 500,000. Must have Letter before
serial
number to fit properly..
Remington made a design change in the action bars in
1975 .Went
from a thicker, wider bar to a nore narow profile bar. The Current
forearms
will not fit the older series.
Standard stock bolt from the Wood stock will fit.
The Stock bolt for the factory synthetic stock
is longer than the one needed for the Ram-Line stock
set.
Standard stock bolts are available for extra charge.
Remington M-760 and M-7600
Ram-Line
stocks will fit both of these (adaptor included for newer model)
.
Shorter bolt may be needed on newer models with that came with
factory
synthetic stock.
Correct stock bolt is available for an extra charge.
Remington M-788 Two sizes avaiable.
Long : 243.7mm-08, 308. 6mm
Short : 222. 223,30-30,22-250
No stock made for
the 44 Magnum.
No stock for Left hand models.
Ruger
Mini-14 Stocks only made for for models with prefix after 182-.
Min-14 Not made for heavey barreled verisons.
Mini-14/ 30 Metal Parts must be used from the wood factory stock.
For factory Ruger synthetic stocks, extra parts will be
rquired
from Ruger (stock reinforcement plate, and screws)
Mini-14 /30 Folding stock stocks are to replace factory wood
stocks.
For factory Ruger synthetic stocks extra parts will be rquired from
Ruger
(stock reinforcement plate, and screws)
Mini-14 Handguards and Muzzle breaks are discontinued Too many
new
variations
of Rugers now available. that won't fit.
M-77. R, RS and RST models.
Not stock for the Ruger M-77 Lightweight or Compact
models RL RLS
M-77 MKII
Short And Long Actions
No stock for the 44 Magnum Carbine. Early or later version
10-22 Models
Not made for the .920 Heavy barrel. Not designed for the barrel
band,
(not neeeded).
Springfield 1903 or A3
Made for stadard MIlitary barrel profile. Stock will have to be
altered (inletted), if original (1903) sight
base,
is left in place.
No bolt slot cut for sporter bolt handle, this will have to be
modified if sporterized with scope...
SAVAGE
M-110 / 111 / 112 / 116 model variations,.5 inch spacing on the screw
holes. All Model-110's made after 1982 are long action regardless
of caliber.
Must a have a letter before serial number to fit. Made for Blind
Magazine
Verions as well as .
Except for the C model (detachable magazine) side release..
Stevens M-200 in long action only..
Not made for the Savage Edge or Axis rifles or 110 Center feed
models
No made for Savage rifles with detachable magazines with front
catch.
No stock for the Older versions with 4 1/2" and 4 1/4" (J+K
series)
centers, From 1957 -1974. Stocks are not available, from Ram-Line (no
source
known).
The Savage M-110 rifles made prior to 1978 may not drop-in and
may
need some fitting (wider magazine box).
No stocks made for the M-111 model with detachable magazine
(front
latch), models
No stocks made for M-10, M-16,
M-12
short action. models
No stocks made for hinged floor
plate
models.
No stocks made for models with triggerguard
plate.(between the action screws)
No stocks made for left hand and
clip-fed
(CL). models
No stocks made for front release clip-fed models
No stocks made for the Varmint
barrels.
models
No stocks made for the M-110 with Accu-trigger models (receiver is contoured
differently).
No stock for the Edge/ Axis series
Below are letters that following Model number (can be a combination of
letters).
G - Hardwood,
F - Synthetic,
C - Clip,
E - Economy,
H - Hinged Floor Plate
L - Left hand
NS - No Sights,
T - Target,
SE - Safari Express,
P - Police, V - Long Range Varmit (26 inch HY
Barrel),
SS - Stainless Steel,
XP - Package Gun (scope, case),
Y - Youth,
K - Muzzle Brake,
AK - Adjustable Muzzle Brake,
B - Laminate,
D - Deluxe (Walnut Checkered),
M - Magnum,
M L - Muzzle Loader
PE - Presentation grade (upscale wood and finish),
S - HVY Barrel Shiloute,
WLE -1 of 1000, extra high grade,
CU - Classic ultra
U - Ultra High Luster
J - Older Series with shorter action (1956-1978)
Weatherby
MK-5 only for Japanese only, Long action and Magnum, up to 338
Magnum
caliber's.
Not for the Geman Made Version of the MK 5
Not for Acumark, or Amreican
MK5 Versions
Howa and Vanguard, in long action.
Mossberg M-1500, S&W M-1500 also.
Not made for Varmint barrels. No stocks made for the for clip fed
models.

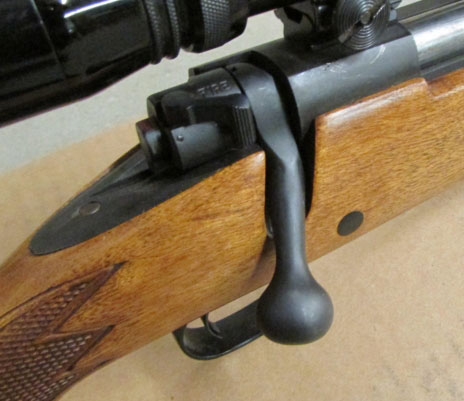

Winchester
Winchester M-70 Trigger guard and 2 Piece hinged floor plate.
Winchester M-70's made from 1965 to 1984 were all long action
(reguardless as to caliber).
Winchester M-70 True Short action came out in 1984 Starting with Serial
number G1783000
Winchester M-70
Pre-64's
were all long action, regardless of caliber serial number prior
to 700,000.
No featherweight stocks for Winchesters.
Not for calibers over 338 Mag.
Winchester M-70 Long available in standard barrel only
Winchester M-670 / 770 / 70A / Ranger. Trigger guard only, with blind
magazine made for all caliber's.Only for version with
safety on bolt.
Will not fit the version with side safety
Will not fit M-70 XTR Sporter
with squared front trigger guard
(stock can be fitted).
No stock for Super Grade Model 70's
No stock for Winchester model 70's with one
piece
hinged floor plate. (after
2002).
No stock made for the Winchester Super Short Magnum (SSM).
Action
6.5 " No stock made for Black shadow M-70 in Short action (blind
magazine).
No stock for calibers over 338 Magnum
Winchester Ranger made from 1991-1999 (Short and Long actions)
uses standard stocks.
RAMLINE info for the following
lever
action models.
Marlin
CS .... Carbine
Safety
C........ Carbine. 1968 and up
RC......Regular Carbine same as C prior to 1968
T .......Texan. Carbine with straight stock, 20 inch barrel
TS.......Texan Safety with 18.5 inch barrel.
SC.......Sporting Carbine, 20 inch barrel, 2/3 mag tube, pistol grip.
CB.......Cowboy, 24 inch octagon barrel and straight stock.
A.........Prior to 1980 24 inch round barrel PG stock
A........ Most recent, 20 inch PG carbine with birch wood, end cap
forend.
W........ 20 inch PG carbine, birch wood, and two barrel bands
Y......... Spikehorn youth model short PG walnut stock 16.5 inch barrel.
LTS...... Texan Safety, 16.25 inch barrel. Marauder.. same as 336 T
except
has 16.25" barrel and SG. Roll marked RC.
ER......... Extra Range PG stock in 356 Winchester. 375.......
PG stock 20 inch barrel in 375 Win.
XLR.......Stainless steel 24 inch barrel PG laminated stock
CC....... 20 inch carbine with camo pattern birch PG stock
SS........20 inch PG stock Stainless steel.
ZG....... Zane Grey Century PG stock, 22 inch octagon barrel. 336
Octagon..
22 inch octagon barrel SG stock. 336
BL.... big loop lever and laminated PG stock.

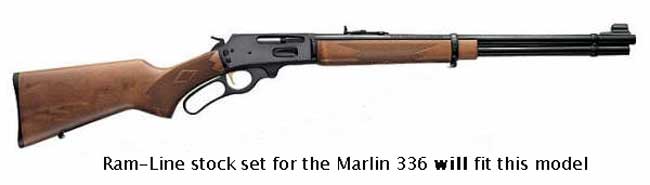

Made for these models. With pistol grip stock, standard length
barrel and barrel band only.: 30A, 336, 336C, 336CC, 336CS, 336W,
336
RC, 336SS. (30-30, .35 Rem only).
Not made for Large
LoopVersions
with Shorter barrel..
Not made for Youth
version
with shorter barrel. (336Y)
Best to slide the barrel band and forearm on as one unit otherwise the
band will be hard to install.

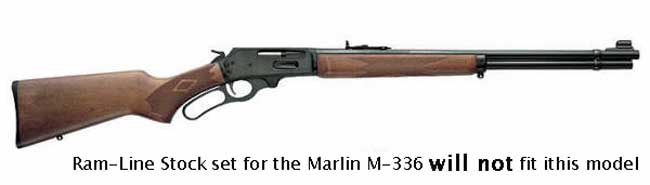

Not made for models with
forearm
cap. .
Not for Models, 30AS, 30AW,
336M,
336SC, 336A, 336T, 336 TC, 336DT
But forearm can be converted
to
this type with a barrel band and a bit of work
Brownells.com has
the
parts. Do at your own risk.
Dovetail filler blank (579-087-100) and Barrel band and
screw (550-000-455) (550-301-590) Runs about $35.00
for
the parts.
Filler
will need to dressed down a bit to mach contour.
Take
the wood forearm
off and take the dovetail piece off the barrel that hold
the screws for the cap. A filler piece will need to be put
back in place to fill the dovetail,. after next step
Install
synthetic
forearm and make a mark where the barrel band
screw will go. Take forearm off and use a small file
to cut a notch in the bottom of the barrel (same as Marlin
Does) for the screw .
Reinstall
forearms and
screw. Install filler for dovetail Done.

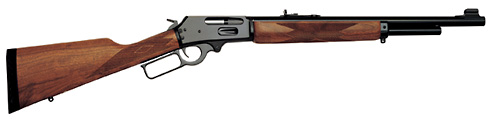

Not made
for the Marlin M-94 or the M-1895 series rifle or guide guns. No
stock
with straight grip
for these versions contact www.mpistocks.com
Will not fit the Rossi Rio Grande. OR Mossberg lever actions
Winchester
M-94
Straight grip models only. Only for models with barrel band. not for
any models with forearm cap.
No Pre-1964 models. Only for model made from 1965 to 2004.
Trapper Model #94005 (discontinued)
is for hand gun
caliber's
( 357, 44-40, 45LC ).
Not made for Large frame Calibers .(307, 356, 375, 38-55 ,.444).
Not made for 94-410.
Not made for models with new safety on the rear tang. (some folks have
adapted
these though) (2013+)
Not made for models with pistol grip.
Not made for Pre-64 Model 94's or Model 92's.
RAMLINE info for the
following shotgun
models. Only made in 12
Gauge .
Mossberg M-500, Only
those
made prior to 1996 Models only, 12 ga only with double bars. And Serial
number K850000 or lower, with 7 5/8 "action tube.
Not for Crown grade,
Not for M-835, M-590.
Not for M-500A (single action bar), none for this model.
Not for the Maverick M-88 For
the Newer Models after 1996, M-500 series with a 6 1/2"action
tube.
We do have some Factory Camo stock sets for the newer
versions,
Call in for more info.
Browning A-5 stocks and forearms (Magnum
and
LWT, 12 ga only).
A-5 sets will not
interchange with Remington
M-11
series shotguns, or American made Brownings.A-5 (serial number will
start
with A, B or C)
Only forA-5
Models
made prior to 1999.
No stocks made for BPS or Gold Models. .
Ithaca
No stocks made for any Ithaca
Remington
M-870 12 Ga, and M-1100/11-87. Standard Weight Receivers.
Not For Lightweight (LWT) Not made for Special Field
models.
The 12 Ga stocks will fit the Older M-870 ands M-1100 in 20 gauge made
prior to 1978 with serial number ending in X or N.
Stock bolt on factory Synthetic stock and Laminated is longer
than
the one needed for the Ram-Line stock set.
No stock set made for the M-870 Super Mag (forearm is too short), or
the
M-11-97 Auto.
No stocks set for the Remington M-11.
Winchester
M-120/1200/ 1300 12 GA /
20 GA Forearm will not fit the Shorter forearm tube.
M-140/ 14 0 / 1500 Semi Auto. Will fit the Mark
II series. Butt stock will fit 20 ga, but the forearm will
have
slight gaps on side of barrel , can be fitted to 20 Ga.
Will not fit the Sears Model 200 or 300 butt stock.
Military Rifle Stocks
Enfield # 4 mk1
This is a sporter stock 2 piece set with rubber pad.. Will also fit
Enfield
#5 Jungle Carbine. Will not fit the Enfield # 4 mk 2 (forends are different)
2lbs .4 ounces
Enfield # 1 Mk3
This is a sporter stock 2 piece set with rubber pad.. Will also
fit
Enfield 2 and and 2A in 308.
2lbs .4 ounces
M-1 Garand
This is a sporter stock three piece set. Metal will have to be
used
from original stock.
2.lbs 2.8 ounces
M-1 Carbine
Two piece set. Will fit US Military and Iver Johnson. Will not
fit
the Universal Carbine. Metal will need to be used for original stock.
1.12 Lbs.
SKS
Two piece set. 2 Inches longer than standard wood stock.
Not
made for D-Models. No provision for bayonet. For Russian and
Chinese
models.
1 lbs .8 ounces, 14 " length of Pull
Not made for versions using AK-47 magaiznes.
Retro fit stock kit Avaialble for Non-folding
stocks.Part
# 10800 Drill (5/16"bit) a hole thru the center of the original stop
and
once the two pieces split, you push them out & then remove the
lockarm,
then remove the fixed cam Fold the lockarm across the stock and place
the cam inside the hole with the spring on the bottom Stick the pin
thru
the top hole and leave about 3/8" above the stock...then tighten set
screw
slightly and Check the lock/unlock function. Adjust if needed.
Mauser's
Large Ring Sporters Interarms Mark X , Parker Hale, FN, and others.
#2098_ Large Ring military, M-98, M-24 series. # 2198_
Small Ring military, Swedish M-38 / 96/ 94, Spanish M-93, Chilean
1895
and others #20961
See Reference below about Mausers.
Note to MAUSER owners: Below is a break down of Mauser actions.
Large Ring/Small Ring size is determined
by
the diameter of the front receiver.
A Large Ring M98 Mauser action
is, 1.40" dia receiver ring, 8.70" in length, with screw spacing of
7.835". Including M98 from WWI and WW2, Cz-24, VZ-24, M-44 Spanish and
many others. Military M-98, with Military barrels Ramline #21981, with
Sporter barrels
Ramline #20981. No
stock for varmint or heavy barrels.
A Small ring Mausers are
1.30" in dia. and are 8.50" in length, with screw spacing of 7.620".
These includ Spanish Models 1893-1916. Sweden Models
1896-1938.-1894.
DWM 1895. Ramline #20961
Ram-Line
Mauser stocks can be modified to fit the following Large Ring
Herter V9, Parker Hale with fitting for trigger and triggerguard,
HVA Swedish Tradewinds with fitting for trigger and triggerguard,
Small Ring Mauser 1893, & 1895 Spanish Mauser 1895
Chilean Turkish 1895 Mauser 1916 308 Spanish
Small Ring / Long Action VZ-33 ,
G 33-40
RAM-LINE STOCKS FOR THE FOLLOWING MAUSERS, ARE NOT AVAILABLE.
No stocks made for the Following Model 1981 Argentine, Interarms
Mark
X
Mini Mause.r
Some stocks
can be modified to fit, but will require inletting and some alteration.
A large number of M48 and 24/47 Yugoslavian large ring
M98 Mausers have recently been dropped on the market.
This M-98 version is considered an intermediate action, and WILL NOT fit a Standard 98 Mauser
stock.
We have had several foks say they use the #20961 and modify to fit.
Notes:
The M1910, M1936 Mexicans by FN and Mexico, 1.30" dia.
receiver
ring, 8.50" in length, with screw spacing of 7.620". Receiver contour
is slightly different from Small ring.
The WWI German KAR98A, 1.30" dia. receiver ring, 8.70" in length, with
screw
spacing of 7.835" (long action, small ring).
Intermediate Large ring action Mausers, 1.40" dia. receiver ring, 8.50"
in length with screw spacing of 7.620" M24 Mexicans by FN and Belgium,
the M24, M47, M48 by FN and Yugoslavia.
Mauser factory commercial magnums 1.50" in dia., 9.240" in length,
have a hole spacing of 8.207".
CAMO PAINT
INSTRUCTIONS
Customer can paint stock as you wish, any pattern is fairly easy to do.
Camo pattern not hard to do.
First clean stock , with an oil free
cleaner.
Lightly sand with fine grit sandpaper.
Epoxy paints work best. Get several colors of epoxy matte finish
fast drying paint, chose colors that match terrain you might be using
the
firearm in.
Apply base coat of paint (light color best) to stock. then using
a differnt color and using a leaf (or other object). hold leaf
1-2"
inches above stock, lightly spray over leaf ,
causing a over spray pattern surrounding the leaf on to the stock.
Alternate
leaf or shapes around using different colors.
Presto! Camo pattern for the cost of paint, and less in less than one
hour
WE ARE
RESELLERS ONLY OF RAM-LINE ® STOCKS. RAM-LINE ®
IS
A DIVISION OF OF ATK INDUSTRIES.
1-800-635-7656
RAMLINE
Ram-Line Corporate page.
Ram-Line ©,
Syn-Tech ©, Wood-Tech ©, Trail-Tech ©, Shot-Tech
©,
Outers Cadet, ©, Champion Target
©,
are Copyrights of ATK industries.
